Product Description：
UL / IEC / EN 60601 IEC61032 Test Probe Kits
Model:BND-TPK02
Product Details:
The BND-TPK-02 contains the devices listed in the core of the UL / IEC / EN 60601 requirements. It includes the following:
· IEC Jointed Finger Probe (w/ banana jack in handle) (BND-B)
· Impact Test Ball (BND-G500R)
· Test Pin Probe: short (BND-13)
· Rigid Finger Probe (BND-11)
· Ball Pressure Tester (BND-QY102)
· Test Hook (BND-SG)
· 4.0 mm Hazardous Live Parts Probe (BND-TB4)
Meets Requirements for Testing Standard(s) including but not limited to:UL 2601IEC 60601CSA 601EN 60601
Datasheets of IEC 60610 IEC 61032 Test Probe Kit:

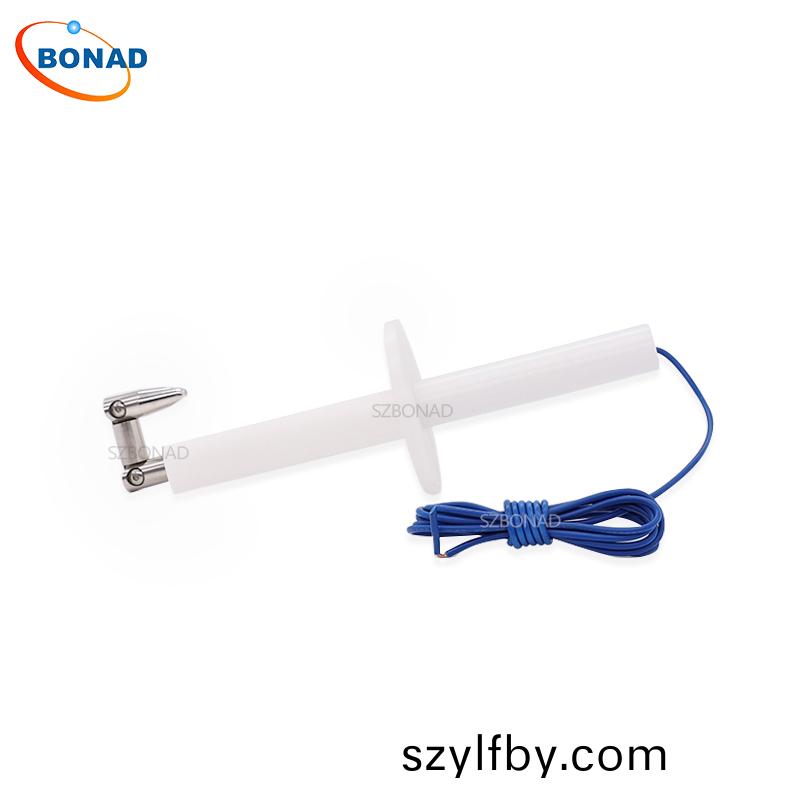

| BND-B test probe B |
| IEC61032 IEC60950 IEC60335 IEC60529 IEC60045 IEC60884 IEC60745 | Knurled Finger Diameter:12mm Knurled Finger Length:80mm Baffle Plate Diameter:50mm Baffle Plate Length:100mm Baffle Thickness:20mm |

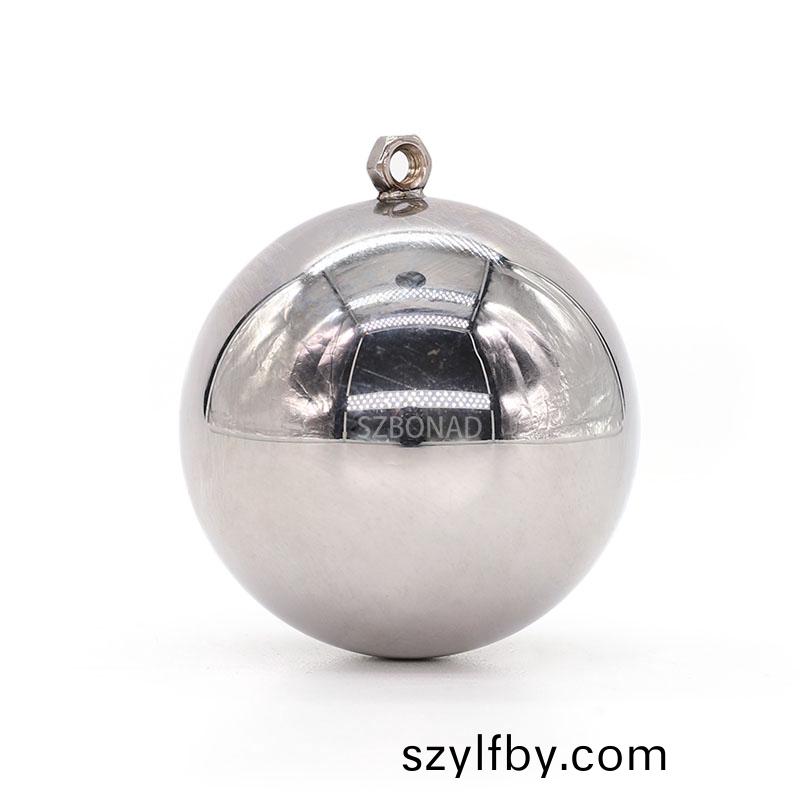

| BND-G500R Test Sphere 500G with ring |
| IEC61032 IEC60529 | Diameter:50mm Weight:227g |

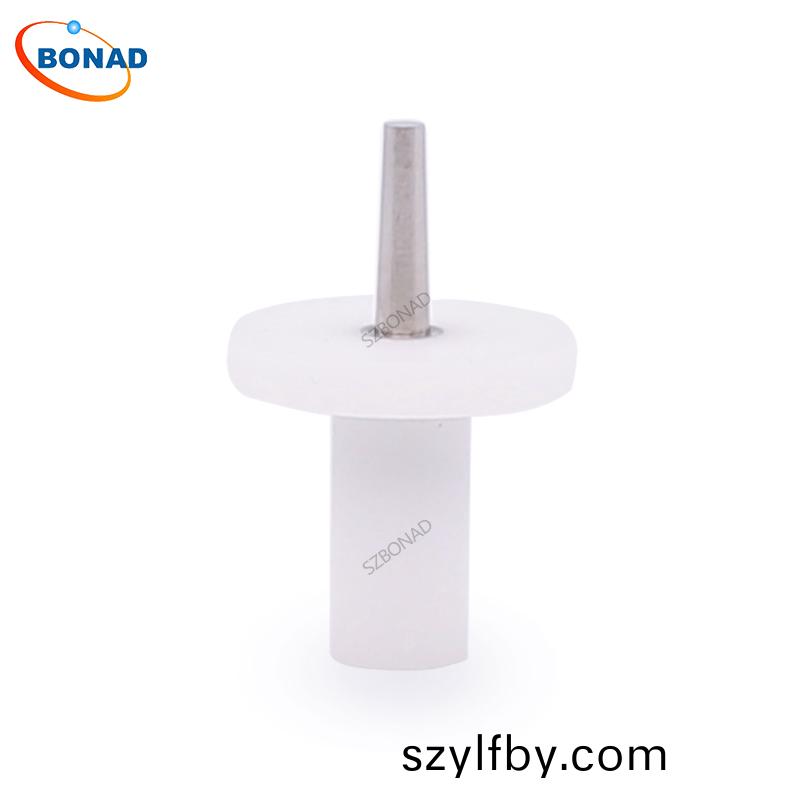

| BND-13 Short Test Pin |
| IEC60065 IEC60335 IEC61032 | The probe Diameter:Head 3mm Tail 4mm The probe Length:15mm Dam-board Diameter:25mm Dam-board Thickness:4mm |

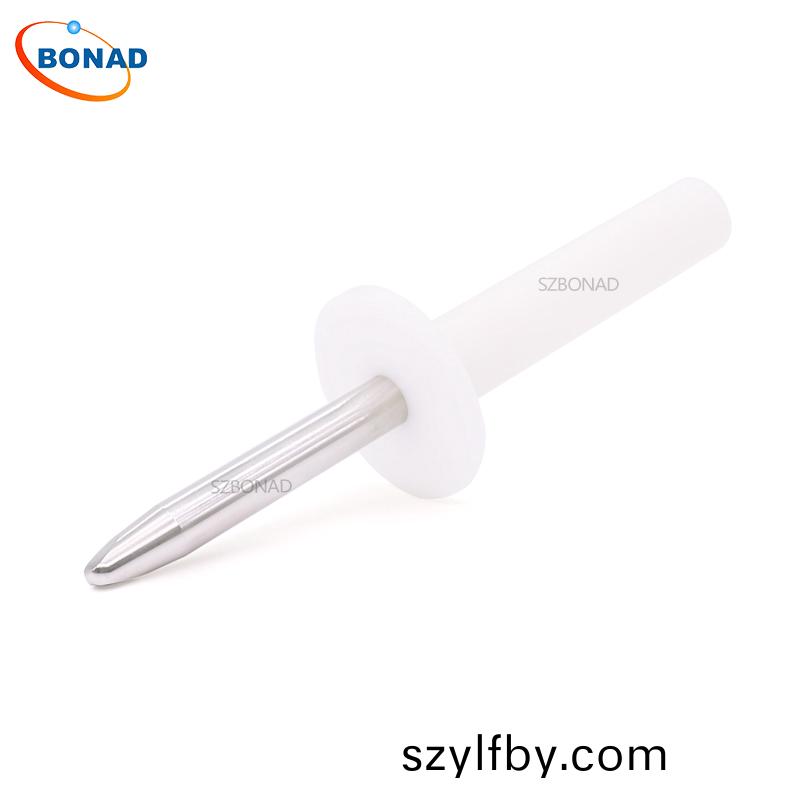

| BND-11 Rigid Test Probe 11 |
| IEC61032 IEC60065 IEC60335 IEC60884 | Nodular Finger Length:80mm Nodular Finger Diameter:12mm Dam-board Diameter:50mm Dan-board Thickness:5mm |

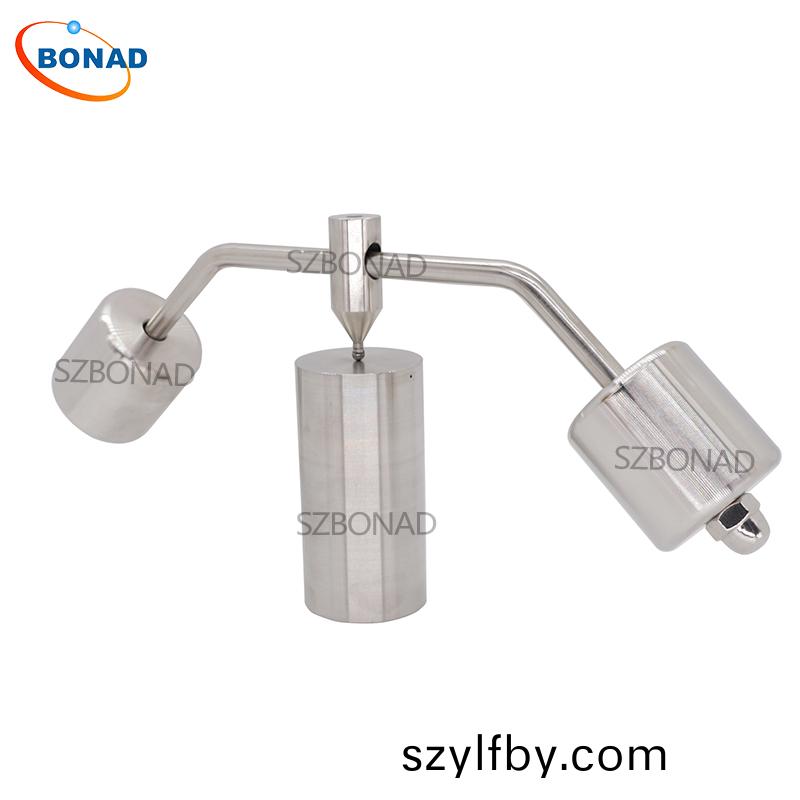

| BND-QY102 Ball Pressure Apparatus |
| IEC60695-10-2 IEC60884 IEC60320 IEC60335 IEC60598 IEC60950 | Ball diameter:5MM Total test pressure:20N±0.2N Samples bearing Diameter:50mm,Length:100mm Solid stainless steel cylinder |

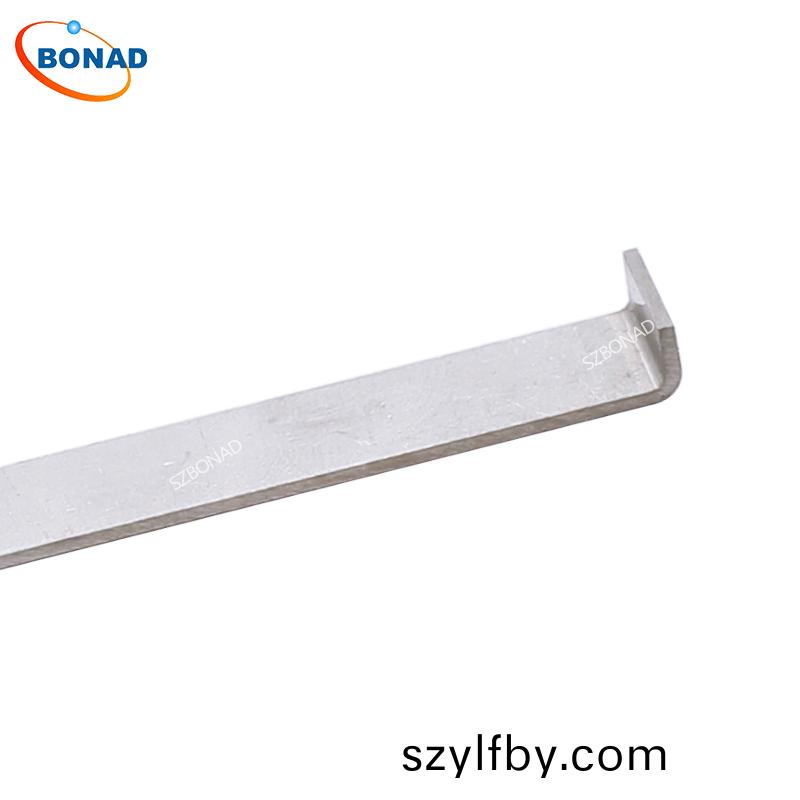

| BND-SG Test Hook Probe |
| IEC60065 | Length:180mm Width:5mm Thickness:1mm |

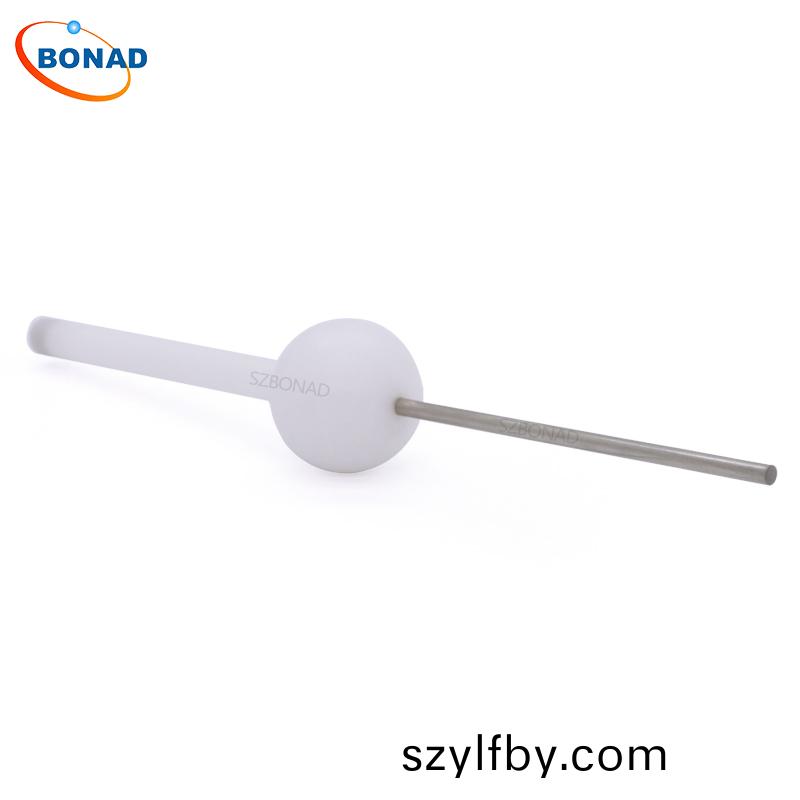

| BND-TB4 4MM test probe |
| IEC61032 IEC60529 | Test Probe Length:100mm Test probe Diameter:4mm Dam-sphere Diameter:3.5mm Handle Diameter:10mm Handle Length:100mm |
